The head the filter pump pulls, for the pool a robot cannot justify

The best pool vacuum heads for 2026

A manual vacuum head is a nozzle on a pole connected to the filter pump by a hose, and it is the oldest way to clean a pool floor and still the one that costs nothing to run. It divides on the surface it is built for. A brush-skirted head seals against a vinyl liner and is what an above-ground pool needs; a wheeled or rollered head runs on tile and concrete and skips on a soft liner. Weight is the property nobody lists and everybody notices: a head that is too light floats off the floor as soon as suction builds, which is why several designs are deliberately ballasted or take a weight. The width is the usual trade — a wide head clears an open floor quickly, a narrow one gets into a corner and a step tread. Then the two fits. The hose connection is 32 or 38 mm and must match the skimmer adaptor, not just the hose. The pole fit is again the inch standard, 1¼" or 1½". And the technique the head depends on, which is worth saying because it is the difference between vacuuming and stirring: the hose is filled with water before it is connected, so the pump does not pull air and lose prime. We compare width, skirt or wheels, weight and ballast, hose size, pole fit and liner suitability.

These parts, one figure beside another

1.

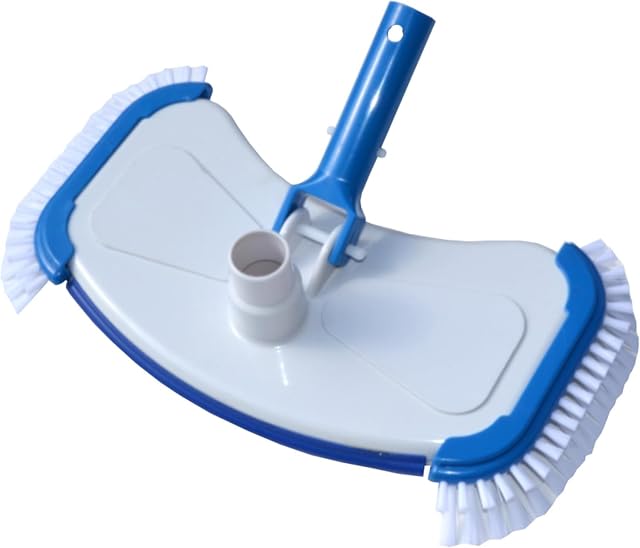

   Paradies Pool GmbH Bodensaugerbürste Deluxe

   A deliberately heavy vacuum head that needs no downward pressure to stay on the floor, with side as well as underside bristles, fitting poles of about Ø 29 mm internal.

   Pole fit

   Telescopic poles of about Ø 29 mm internal diameter — the only pole dimension published in this family. Pole not included

   Width

   Not published

   Skirt or wheels

   Not published. Underside and side bristles

   Weight

   No figure published. Stated heavy enough that no additional force is needed to press the head down

   Ballast

   Inherent — the head’s own weight is stated as the reason no downward pressure is required

   Hose size

   Ø 32 or 38 mm, into an integrated hose connection. Hose not included

   Liner suitability

   Not published

   Amazon reference

   B078JT3Z48 (one reference across 5 Amazon marketplaces)

   EAN

   0726714750016

   • The only head here to publish a pole diameter — about Ø 29 mm internal
   • States its own weight as a design property rather than a shipping fact
   • No width published, so the number of passes to cover a floor is unknown

   Best for: A pool with a 29 mm pole already owned, where the head should stay down by itself

   Check price on Amazon
2.

   Arebos Bodensaugerbürste, clip system

   A rectangular head with additional weights built into the brush body for floor grip, rounded corners and a rubber pad at the front to avoid scratching.

   Pole fit

   Socket for all common aluminium telescopic poles, via a clip system. No diameter published. Pole not included

   Width

   Not published. Rectangular head

   Skirt or wheels

   Not published. Side and underside bristles, with rounded corners

   Weight

   No figure published

   Ballast

   Additional weights in the brush head, stated to improve floor grip — one of two ballast statements in this family

   Hose size

   Integrated connection for pool hose Ø 32/38 mm

   Liner suitability

   Stated to clean without damaging the pool wall; rounded corners and a rubber pad at the front are stated to prevent scratches. Suitable for every basin shape

   Amazon reference

   B08TR6GKLS (one reference across 6 Amazon marketplaces)

   EAN

   4260627426249

   • Publishes added weights in the head rather than relying on the moulding
   • A rubber pad at the front, which is the edge that meets the wall
   • No width and no weight figure published

   Best for: A liner pool where the head is pushed into corners and along walls

   Check price on Amazon
3.

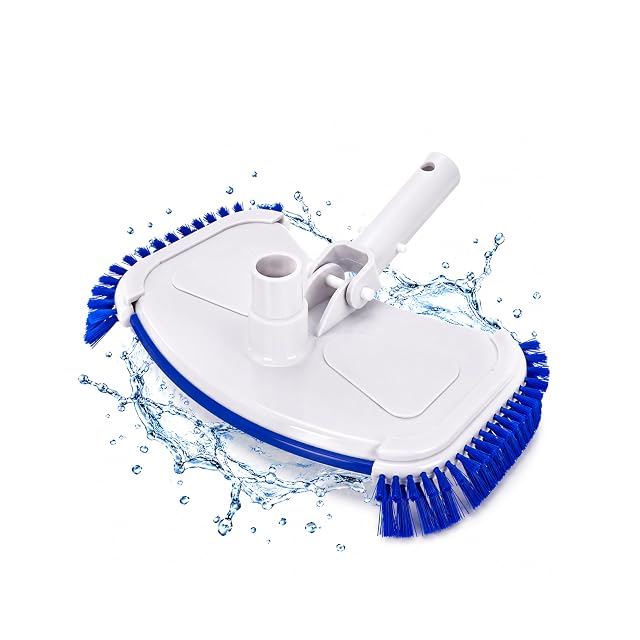

   HAF Bodensauger Deluxe

   A manual floor vacuum with side bristles and a brush strip, stated to glide without scratching over tiles, concrete, liners, polyester and ceramic — the fullest surface list on this shelf.

   Pole fit

   Suitable for common telescopic poles. No diameter published. Pole not included

   Width

   Not published

   Skirt or wheels

   Not published. Side bristles and a brush strip

   Weight

   Not published

   Ballast

   Not published

   Hose size

   Ø 32 mm and Ø 38 mm, suiting pool hoses, filter pumps and pump systems. Hose not included

   Liner suitability

   Stated suitable for tiles, concrete, liners, polyester and ceramic, gliding without scratches and protecting the pool liner in daily use — the only surface list in this family

   Amazon reference

   B0D1ND1SG2 (one reference across 5 Amazon marketplaces)

   EAN

   4262465963689

   • The only head here to name the five surfaces it suits individually
   • States plainly that pole and hose are needed separately
   • No width, no weight, no ballast and no pole diameter

   Best for: A tiled, concrete or polyester pool where a plastic head has to be trusted against the finish

   Check price on Amazon
4.

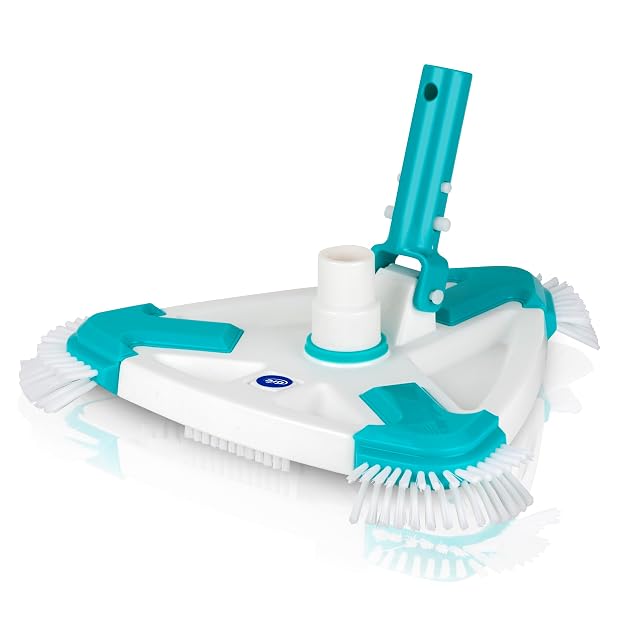

   Gre 40016N triangular head

   A triangular vacuum head measuring 25 × 26 × 11 cm with a rotating brush, designed so that no area is missed and light enough for long sessions.

   Pole fit

   Clip connection system, stated compatible with any telescopic pole. No diameter published. Pole not included

   Width

   25 × 26 × 11 cm — one of only two dimension sets published in this family

   Skirt or wheels

   Rotating brush. Triangular form, stated to ease the collection of dirt and deposits

   Weight

   No figure published. Stated low weight, allowing long cleaning without fatigue

   Ballast

   Not published — this head is sold on being light rather than heavy

   Hose size

   Not published as a diameter. The hose connects to the skimmer or the suction port to draw debris to the filter

   Liner suitability

   Not limited to a particular liner type; stated suitable for a variety of linings

   Amazon reference

   B079XMWZLV (one reference across 6 Amazon marketplaces)

   EAN

   8412081273044

   • The only triangular head here, which reaches corners a rectangle cannot
   • Publishes its three dimensions, which five heads on this shelf do not
   • Sold on lightness, where two rivals here argue for weight against suction lift

   Best for: A pool with corners and steps, cleaned in long sessions

   Check price on Amazon
5.

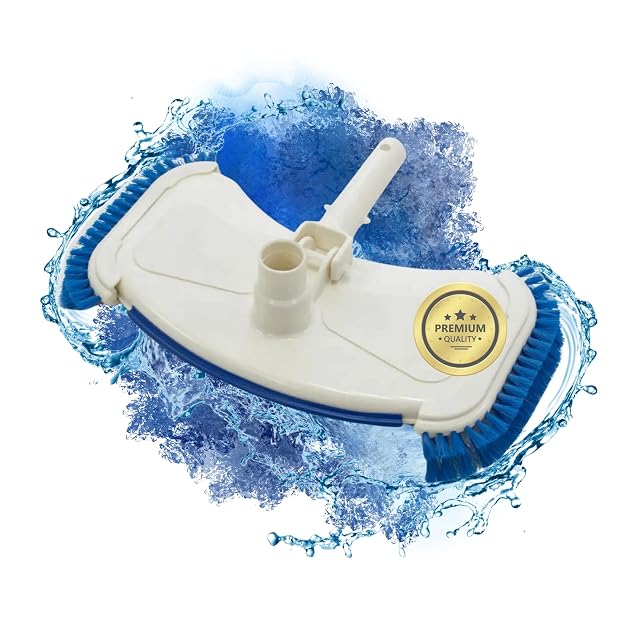

   Maxorado Poolsauger Bodendüse

   A floor nozzle with double side brushes and eight rows of bristles underneath — the only bristle count on this shelf — and a handle that doubles as a pole adapter.

   Pole fit

   The handle serves as an adapter for telescopic poles, and allows the brush to be used by hand. No diameter published. Pole not included

   Width

   Not published

   Skirt or wheels

   Double side brushes and 8 bristle rows on the underside — the only bristle count published in this family

   Weight

   Not published

   Ballast

   Not published. A durable, stable housing is stated

   Hose size

   Ø 32 mm and Ø 38 mm connections, pushed onto the pool hose. Cleaning is carried out by the filter system, stated

   Liner suitability

   Not published as a surface list. Stated to clean quickly and gently

   Amazon reference

   B0BSXL2LMP (one reference across 5 Amazon marketplaces)

   EAN

   4251504131233

   • Publishes a bristle count — eight rows underneath plus double side brushes
   • Can be used by hand as well as on a pole, which no other head here offers
   • No width, no weight, no ballast and no pole diameter

   Best for: A small pool where the head is sometimes used by hand in the shallow end

   Check price on Amazon
6.

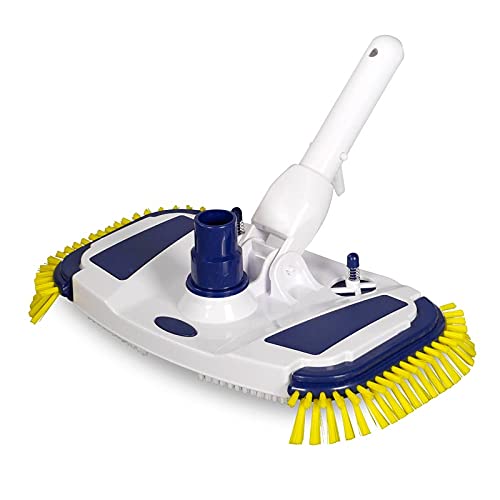

   POOL Total Bodensaugerbürste Premium

   A premium floor vacuum brush published at 350 × 200 mm with underside and side bristle rows, for telescopic poles of about Ø 3 cm.

   Pole fit

   Integrated socket for common telescopic poles of about Ø 3 cm. Pole not included

   Width

   350 × 200 mm — one of only two dimension sets published in this family, and the widest

   Skirt or wheels

   Not published. Underside and side bristle rows

   Weight

   Not published

   Ballast

   Not published

   Hose size

   Ø 32 mm or Ø 38 mm, connecting directly to the skimmer or the filter system

   Liner suitability

   Not published. High-quality stable plastic, stated

   Amazon reference

   B09BD15DVR (one reference across 2 Amazon marketplaces)

   EAN

   4251002828901

   • The widest head published on this shelf at 350 mm, so a floor takes fewer passes
   • Publishes a pole diameter — about Ø 3 cm — which only one other head here does
   • No weight and no ballast, where two heads in this family address suction lift

   Best for: A large flat pool floor where coverage per pass is what matters

   Check price on Amazon
7.

   POOLAZA Manual vacuum head 35 cm, weighted

   A weighted 35 cm head at a published 2 kg on eight low-friction wheels, with a handle rotating through 180° so direction changes do not lift it off the floor.

   Pole fit

   Most 3 cm telescopic pool poles, stated, locking securely. Pole not included

   Width

   35 cm, published as extra width for deep cleaning — the widest in this family

   Skirt or wheels

   8 low-friction wheels, stated for corners, steps and tight spaces — the only wheeled head on this shelf

   Weight

   2 kg, published — the only weight figure in this family

   Ballast

   Inherent. The 2 kg is published as the perfect weight, with reinforced ABS and metal construction

   Hose size

   4/5 cm hoses, stated

   Liner suitability

   Not published as a surface list. Stated for all pool types, hot tubs, spas and garden ponds

   Amazon reference

   B0FQJP673Q (one reference across 5 Amazon marketplaces)

   EAN

   0762849622217

   • The only head here to publish a weight — 2 kg — and the only one on wheels
   • The widest published head on this shelf at 35 cm
   • Publishes 4/5 cm hoses where six heads in this family publish Ø 32/38 mm

   Best for: A large pool floor where the head must stay down and track through corners

   Check price on Amazon
